T-700 TBM Tail Sealing Grease
Aiddem T-700 TBM Tail Sealing Grease enhances efficiency in shield tunneling with excellent water resistance and lubrication properties. It prevents mortar and groundwater infiltration and reduces friction between the segment and shield tail, with superior adhesion and no water leakage.
T-700 TBM Tail Sealing Grease provides sealing, waterproofing, and lubrication during the shield tunneling process, ensuring no water leakage and excellent adhesion. It is effective under a wide range of temperatures and conditions.
T-700 TBM Tail Sealing Grease
▋Description :
T-700 TBM Tail Sealing Grease is a homogeneous paste made through a special process using fibers, thickeners, fillers, sealants, and other ingredients. Its main functions are to provide sealing, waterproofing, and lubrication during the shield tunneling process.
▋Application :
●Prevent the mortar outside the shield machine and groundwater from infiltrating into the shield machine;
●When the segment exits the shield tail, apply a layer of grease to the outside of the segment to reduce friction between the segment and the shield tail.
▋Features :
●Excellent water-resistant sealing properties;
●Excellent lubrication properties;
●Good pumpability over a wide temperature range;
●Good resistance to water impact;
●Excellent adhesion.
▋Product data ：
|
Item |
Typical Data |
|
|
Pumping Type |
Manual Coating Type |
|
|
Appearance (Visual) |

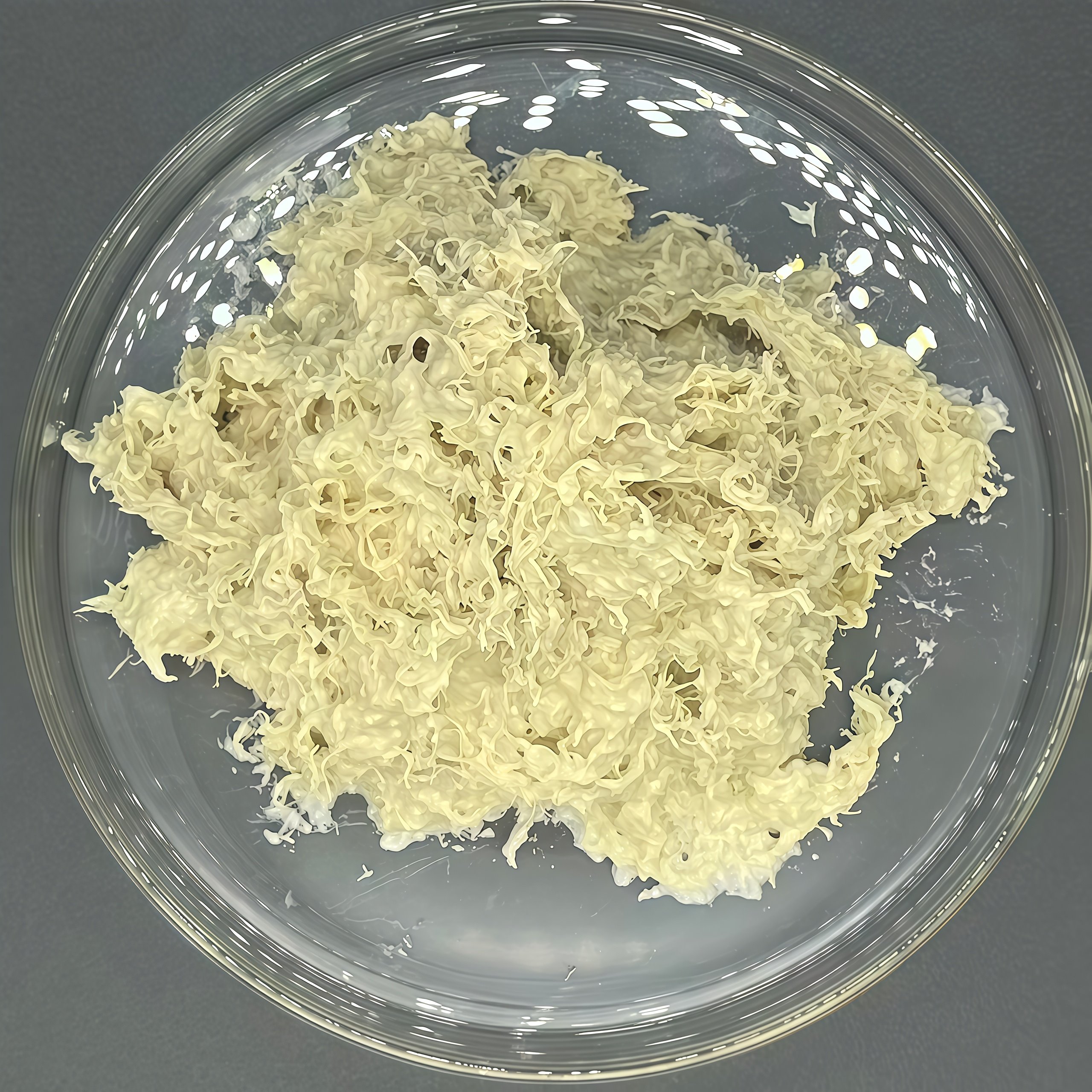

Yellow fibrous uniform grease |
Yellow fibrous uniform grease |
|
Metal Corrosion Resistance, applied to iron plate at room temperature (30 days) |
Non-corrosive |
Non-corrosive |
|
Penetration, 0.1mm |
220–270 |
210–230 |
|
Evaporation Rate (80°C, 5h), % |
≤2.5 |
≤2.5 |
|
Density (25°C, g/cm³) |
1.3 |
1.3 |
|
Pumpability (25°C, 8 bar, g/min) |
≥20 |
≥20 |
|
Water-resistant Sealing (25°C, 20 mesh sieve, 3.5 MPa, 1 hour) |
No water leakage |
No water leakage |
|
Adhesion (At 25℃, two 120*120*5 steel plates, sliding displacement in 10 minutes)) |
≤10 mm |
≤10 mm |
▋Pack size :
● 250KG per drum, with custom packaging available upon request.
▋Precautions :
● Before use, clean the lubricating parts thoroughly and allow them to dry before applying this product.
● After use, make sure to seal the cap tightly to prevent contamination from foreign particles.
● Do not mix with other greases to avoid affecting performance.
● Store the product in a clean, dry, and light-protected area.
